服务器监控工具普罗米修斯——Centos部署监控系统Prometheus+Grafana
|
|
Centos,软件安装,运维
|
1,184
|
lushanyanyv

581 字
|
25 分钟

快速安装（暂不可用）

Prometheus安装可使用一键安装脚本https://gitee.com/lushanyanyv/prometheus

Grafana安装请参照下文

服务器监控只需要一个grafana即可，每台服务安装Prometheus，使用脚本更便捷！

国内

curl -sL https://gitee.com/li-chen-xing/prometheus/raw/master/prometheus-setup.sh | sed 's/\r$//' | bash

国外

curl -sL https://gitee.com/li-chen-xing/prometheus/raw/master/prometheus-setup-abroad.sh | sed 's/\r$//' | bash

准备

关闭防火墙

systemctl stop firewalld
systemctl disable firewalld

关闭selinux

sed -i 's/enforcing/disabled/' /etc/selinux/config  # 永久
setenforce 0  # 临时
sestatus   #查询Selinux状态

下载软件包CentOS

yum install -y net-tools bash-completion lrzsz wget fontconfig urw-fonts
yum -y update && yum -y upgrade
#安装go
yum install -y epel-release
yum install golang
#查看go版本
go version

下载软件包Ubuntu

#安装go
sudo apt install golang-go -y
#查看go版本
go version

安装Prometheus

官网：https://prometheus.io

Github主页：https://github.com/prometheus/prometheus

下载Prometheus：Download | Prometheus
自行下载后上传

或者执行以下命令

cd /root && wget https://github.com/prometheus/prometheus/releases/download/v3.1.0/prometheus-3.1.0.linux-amd64.tar.gz

解压

tar -zxvf prometheus-3.1.0.linux-amd64.tar.gz
mv prometheus-3.1.0.linux-amd64/ prometheus
rm -f prometheus-3.1.0.linux-amd64.tar.gz

启动

cd prometheus
./prometheus --config.file=./prometheus.yml &

访问 http://ip:9090

服务器监控工具普罗米修斯——Centos部署监控系统Prometheus+Grafana插图

配置开机自启

#ubuntu
cd /lib/systemd/system
#centos
cd /etc/systemd/system

vi prometheus.service
[Unit]
Description=Prometheus Monitoring System
Documentation=Prometheus Monitoring System

[Service]
ExecStart=/root/prometheus/prometheus \
   --config.file=/root/prometheus/prometheus.yml \
   --web.listen-address=:9090
Restart=on-failure
[Install]
WantedBy=multi-user.target
systemctl daemon-reload
systemctl enable prometheus
systemctl start prometheus
systemctl status prometheus

进阶

修改 prometheus.yml

# my global config
global:
  scrape_interval: 15s # Set the scrape interval to every 15 seconds. Default is every 1 minute.
  evaluation_interval: 15s # Evaluate rules every 15 seconds. The default is every 1 minute.
  # scrape_timeout is set to the global default (10s).

# Alertmanager configuration
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# A scrape configuration containing exactly one endpoint to scrape:
# Here it's Prometheus itself.
scrape_configs:
  # The job name is added as a label `job=<job_name>` to any timeseries scraped from this config.
  - job_name: "prometheus"
    # metrics_path defaults to '/metrics'
    # scheme defaults to 'http'.
    static_configs:
      - targets: ["localhost:9090"]

  # 添加 PushGateway 监控配置
  - job_name: 'pushgateway'
    static_configs:
      - targets: ['localhost:9091']
        labels:
          instance: pushgateway

  # 添加 Node Exporter 监控配置
  - job_name: 'node exporter'
    static_configs:
      - targets: ['localhost:9100']

可选

  # 添加 Node Exporter 监控配置
  - job_name: 'node exporter'
    static_configs:
      - targets: ['localhost1:9100', 'localhost2:9100', 'localhost3:9100']

中文注释

# 我的全局配置
global:
  scrape_interval: 15s  # 设置每隔15秒抓取一次数据。默认为每分钟一次。
  evaluation_interval: 15s  # 每隔15秒评估一次规则。默认为每分钟一次。
  # scrape_timeout 使用全局默认值（10秒）。

# Alertmanager 配置
alerting:
  alertmanagers:
    - static_configs:
        - targets:
          # - alertmanager:9093

# 一次加载规则，并根据全局 `evaluation_interval` 定期评估规则。
rule_files:
  # - "first_rules.yml"
  # - "second_rules.yml"

# 抓取配置，包含一个用于抓取的端点：
# 这里是 Prometheus 本身。
scrape_configs:
  # 作业名称将作为标签 `job=<job_name>` 添加到从此配置中抓取的任何时间序列上。
  - job_name: "prometheus"
    # metrics_path 默认为 '/metrics'
    # scheme 默认为 'http'
    static_configs:
      - targets: ["localhost:9090"]

  # 添加 PushGateway 监控配置
  - job_name: 'pushgateway'
    static_configs:
      - targets: ['localhost:9091']
        labels:
          instance: pushgateway

  # 添加 Node Exporter 监控配置
  - job_name: 'node exporter'
    static_configs:
      - targets: ['localhost:9100']

pushgateway

Github主页：https://github.com/prometheus/pushgateway

下载链接：https://github.com/prometheus/pushgateway/releases/download/v1.11.0/pushgateway-1.11.0.linux-amd64.tar.gz

下载pushgateway

cd /root && wget https://github.com/prometheus/pushgateway/releases/download/v1.11.0/pushgateway-1.11.0.linux-amd64.tar.gz

解压

tar -zxvf pushgateway-1.11.0.linux-amd64.tar.gz
mv pushgateway-1.11.0.linux-amd64/ pushgateway
rm -f pushgateway-1.11.0.linux-amd64.tar.gz

启动

cd pushgateway
./pushgateway --web.listen-address:9091 &

配置开机自启

#ubuntu
cd /lib/systemd/system
#centos
cd /etc/systemd/system

vi pushgateway.service
[Unit]
Description=Pushgateway
Documentation=Pushgateway

[Service]
ExecStart=/root/pushgateway/pushgateway \
   --web.listen-address=:9091
Restart=on-failure
[Install]
WantedBy=multi-user.target
systemctl daemon-reload
systemctl enable pushgateway
systemctl start pushgateway
systemctl status pushgateway

node_exporter

Github主页：https://github.com/prometheus/node_exporter

下载node_exporter

cd /root && wget https://github.com/prometheus/node_exporter/releases/download/v1.8.2/node_exporter-1.8.2.linux-amd64.tar.gz

解压

tar -zxvf node_exporter-1.8.2.linux-amd64.tar.gz
mv node_exporter-1.8.2.linux-amd64/ node_exporter
rm -f node_exporter-1.8.2.linux-amd64.tar.gz

分发

xsync node_exporter

启动

cd node_exporter
./node_exporter --web.listen-address:9091 &

配置开机自启

#ubuntu
cd /lib/systemd/system
#centos
cd /etc/systemd/system

vi node_exporter.service
[Unit]
Description=Node_exporter
Documentation=Node_exporter

[Service]
ExecStart=/root/node_exporter/node_exporter
Restart=on-failure

[Install]
WantedBy=multi-user.target
systemctl daemon-reload
systemctl enable node_exporter
systemctl start node_exporter
systemctl status node_exporter

分发

sudo xsync /usr/lib/systemd/system/node_exporter.service

安装Grafana

Ubuntu and Debian(64 Bit)

sudo apt-get install -y adduser libfontconfig1 musl
wget https://dl.grafana.com/enterprise/release/grafana-enterprise_10.0.3_amd64.deb
sudo dpkg -i grafana-enterprise_10.0.3_amd64.deb

Red Hat, CentOS, RHEL, and Fedora(64 Bit)

下载Grafana
Download Grafana | Grafana Labs

sudo yum install -y https://dl.grafana.com/enterprise/release/grafana-enterprise-10.0.3-1.x86_64.rpm

安装RPM包

sudo rpm -Uvh grafana-enterprise-10.0.3-1.x86_64.rpm

启动Grafana

systemctl daemon-reload
systemctl enable grafana-server.service
systemctl start grafana-server.service
systemctl status grafana-server.service

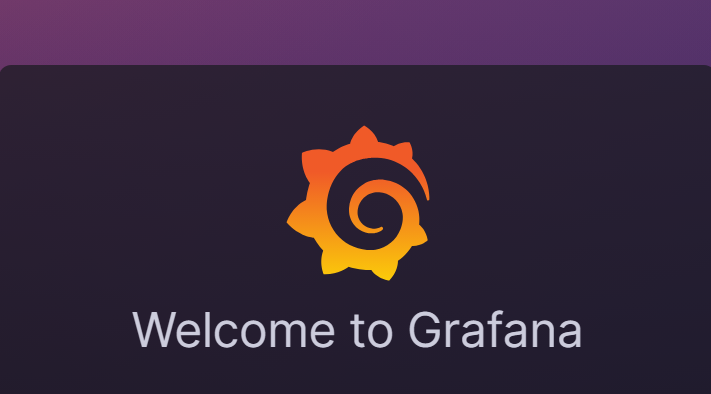

访问 http://ip:3000，admin/admin

服务器监控工具普罗米修斯——Centos部署监控系统Prometheus+Grafana插图1
systemctl status prometheus
systemctl status pushgateway
systemctl status node_exporter
systemctl status grafana-server.service

Origin not allowed解决方法

编辑反向代理配置文件

服务器监控工具普罗米修斯——Centos部署监控系统Prometheus+Grafana插图2
将
proxy_set_header Host 127.0.0.1;
改为
proxy_set_header Host 你的域名;

然后重启nginx

sudo systemctl restart nginx
sudo systemctl status nginx

Grafana Dashboards下载

Dashboards | Grafana Labs

Node Exporter Dashboard 220413 ConsulManager自动同步版 | Grafana Labs

Linux主机详情 | Grafana Labs 12633

Node Exporter for Prometheus Dashboard based on 11074 | Grafana Labs 15172

Node Exporter Dashboard EN 20201010-StarsL.cn | Grafana Labs 11074

感谢观看服务器监控工具普罗米修斯——Centos部署监控系统Prometheus+Grafana，欢迎分享https://cn-lcx.cn/2023/08/08/centos%e5%ae%89%e8%a3%85prometheusgrafana/
